RIGID JIB 2.5 TONNE SHORT REACH

Safe Working Load (SWL) 2500kgs
Unit Weight 100kgs
Load Centre 790mm
Pocket Size 185 x 65mm
Pocket Centres 275mm
Horizontal Centre of Gravity 630mm
Vertical Centre of Gravity 135mm

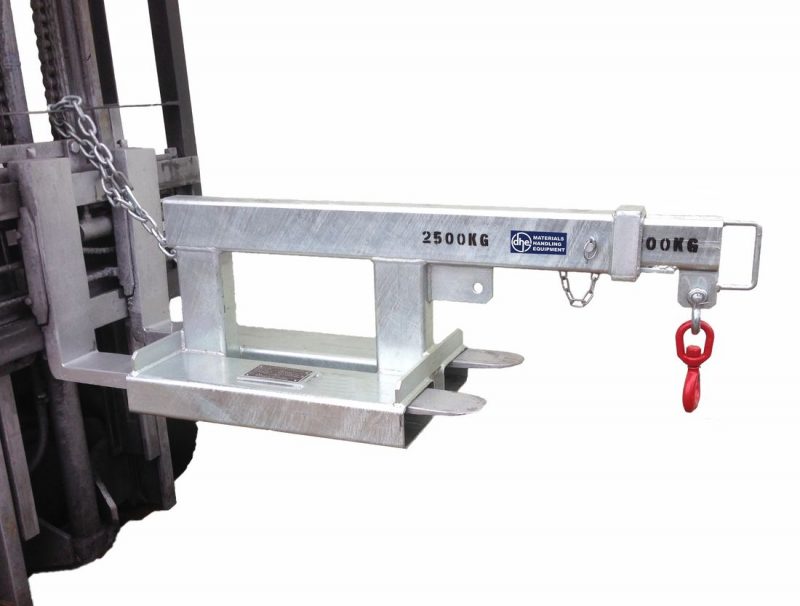

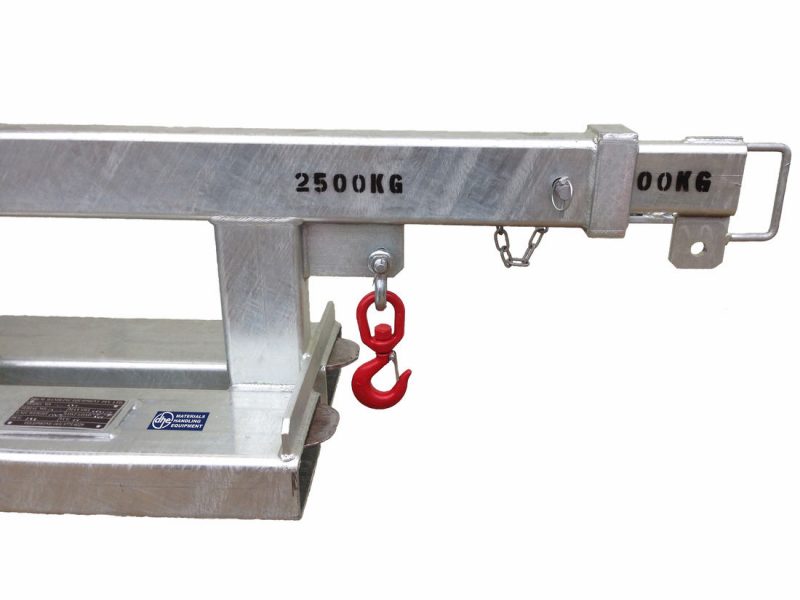

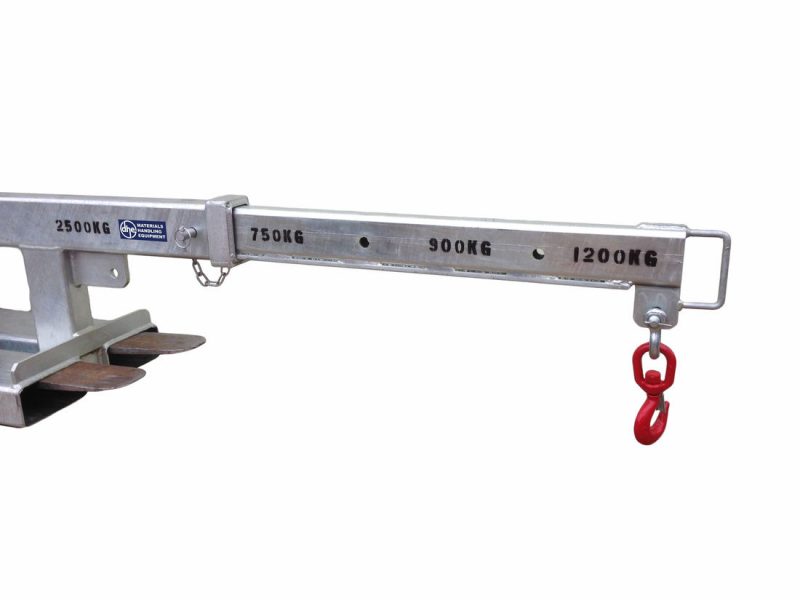

The Rigid Jib 2.5 Tonne Short Reach allows for additional lifting height with the extension beam raised above the fork pockets. The overall length when retracted is 1.3 metres and when extended is 2 metres. Zinc plated finish. All our Forklift attachments are fully compliant and come with a certification certificate, operations manuals and compliance…

ENQUIRE BY EMAIL +
Category:

Description

The Rigid Jib 2.5 Tonne Short Reach allows for additional lifting height with the extension beam raised above the fork pockets. The overall length when retracted is 1.3 metres and when extended is 2 metres. Zinc plated finish.

All our Forklift attachments are fully compliant and come with a certification certificate, operations manuals and compliance plate attached.
