INCLINE JIB 4.75 TONNE SHORT REACH

Safe Working Load (SWL) 4750kgs
Unit Weight 180kgs
Load Centre 820mm
Pocket Size 185mm x 75mm
Pocket Centres 370mm
Horizontal Centre of Gravity 650mm
Vertical Centre of Gravity 300mm

The Incline Jib 4.75 Tonne Short Reach is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres. Zinc plated finish. Comes fitted with safety…

ENQUIRE BY EMAIL +
Category:

Description

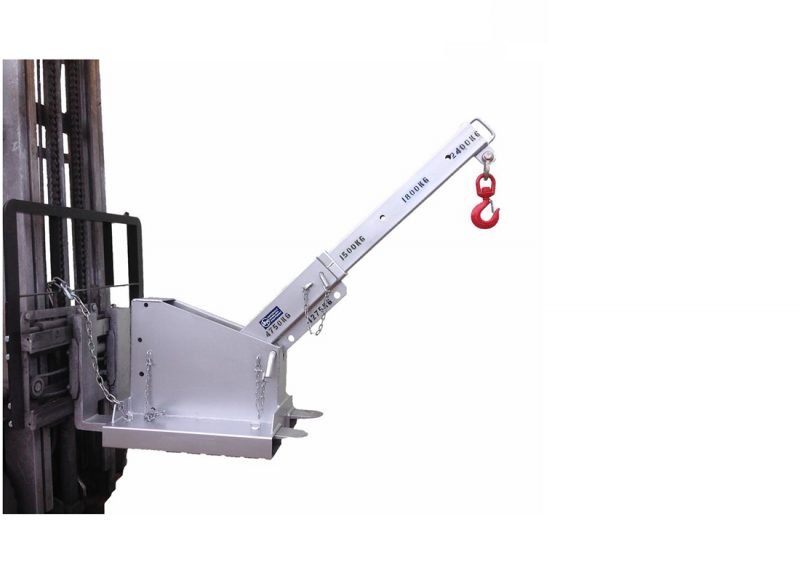

The Incline Jib 4.75 Tonne Short Reach is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres. Zinc plated finish. Comes fitted with safety hook and shackle.

All our Forklift attachments are fully compliant and come with a certification certificate, operations manuals and compliance plate attached.
